THE NEW SQ+
Allen & Heath Digital Mixing Consoles
Allen & Heath has announced SQ+, a major extension to the SQ range, introducing RackUltra FX processing, expanded DEEP processing power and a bigger and bolder interface across three new models: the SQ5+, SQ6+, and SQ7+.
“SQ+ takes everything that made SQ the mixer of choice for engineers worldwide and adds even more."
New Big Screen
- 9” Capacitive Touchscreen
- Completely redesigned "Dark" GUI
- Same navigation/workflow as SQ
- Improved UX
New Look
- Clean "Black on Graphite" Styling
- Similar to CQ/Qu
- Clear Labelling and Artwork
- Black Fader Caps w/skirts
- Black Rotary Caps w/skirts
- Flush mount Touchscreen and channel
- display glass
- Black Screws
New Rack UltraFX
- 4x RackUltra FX Engines
- 4x RackUltra FX Sends/Returns
- Can also run ‘standard’ FX
- Spaces, Plate

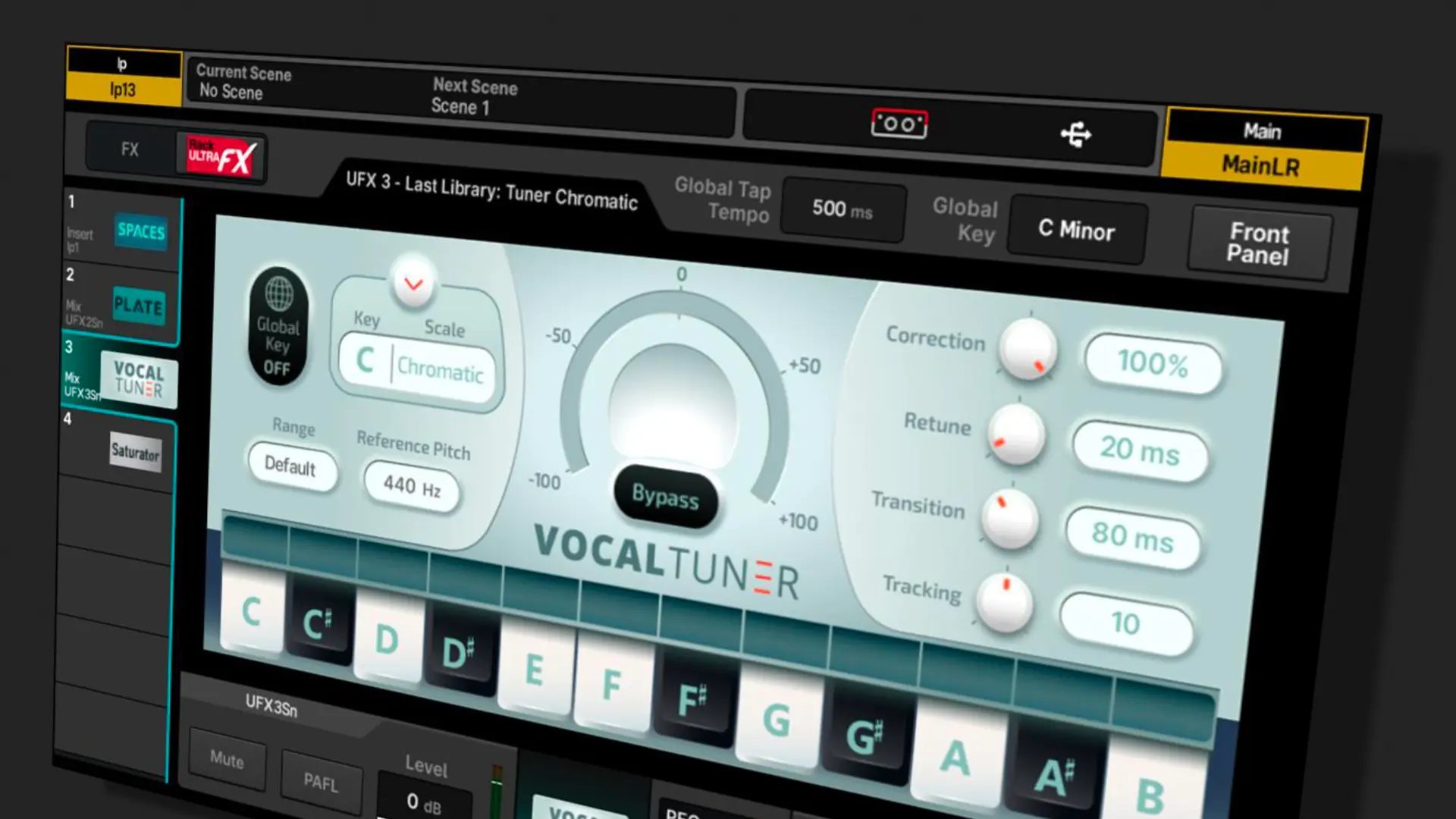

- Vocal Tuner, Gridder, Shifter
- Harmoniser 2, Harmoniser 4
- Amp+Cab Distortion
- Saturator
"With SQ+, we're not just launching three new mixers, we're expanding the SQ Series,”
“By adding SQ+ alongside the original SQ models, there's now an SQ for every user, every show and every budget."

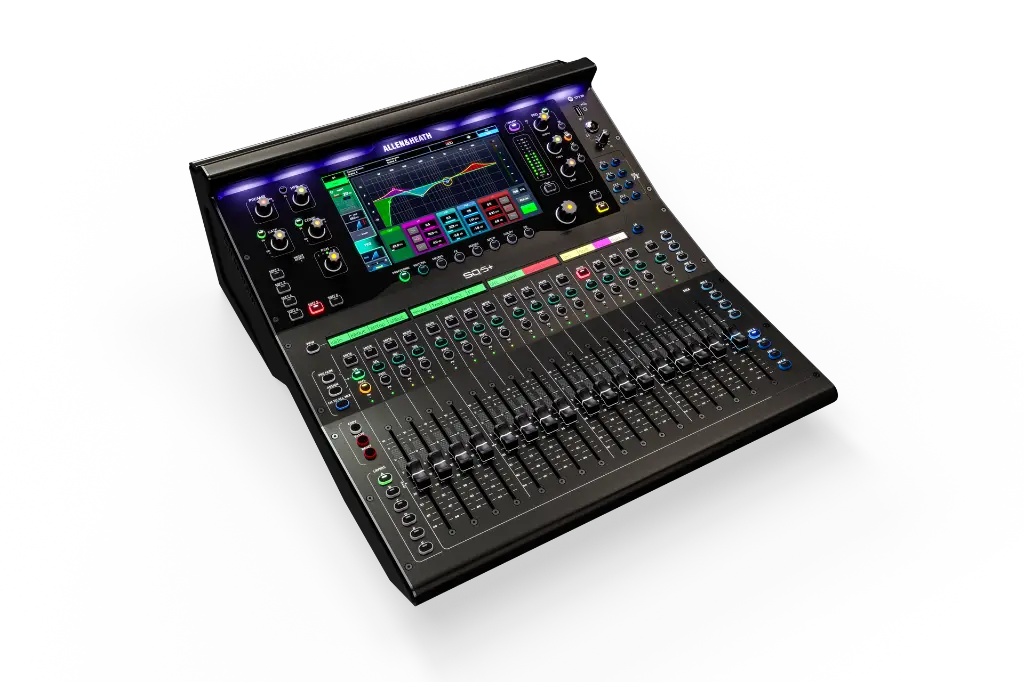

SQ5 +
- 96kHz XCVI Core
- 9" Touchscreen
- 48 Input Channels
- LR+12 Stereo Group/Aux
- 4 FX Sends
- 8 FX engines w/stereo returns
- 4 RackUltra FX Sends
- 4 RackUltra FX engines w/stereo returns
- 16+1 100mm Faders w/6 custom layers
- 8 SoftKeys
- 16+1 XLR Mic/Line Inputs
- 2 TRS Stereo Line Inputs
- 3.5mm Stereo Line Input
- 12 XLR Line Outputs
- 2 TRS Outputs
- AES3 Stereo Output

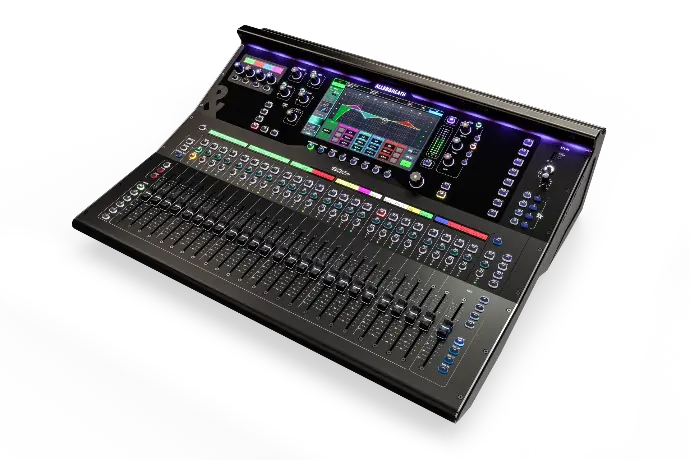

SQ6 +
- 96kHz XCVI Core
- 9" Touchscreen
- 48 Input Channels
- LR+12 Stereo Group/Aux
- 4 FX Sends
- 8 FX engines w/stereo returns
- 4 RackUltra FX Sends
- 4 RackUltra FX engines w/stereo returns
- 24+1 100mm Faders w/6 custom layers
- 16 SoftKeys, 4 Soft Rotaries
- 24+1 XLR Mic/Line Inputs
- 2 TRS Stereo Line Inputs
- 3.5mm Stereo Line Input
- 14 XLR Line Outputs
- 2 TRS Outputs
- AES3 Stereo Output

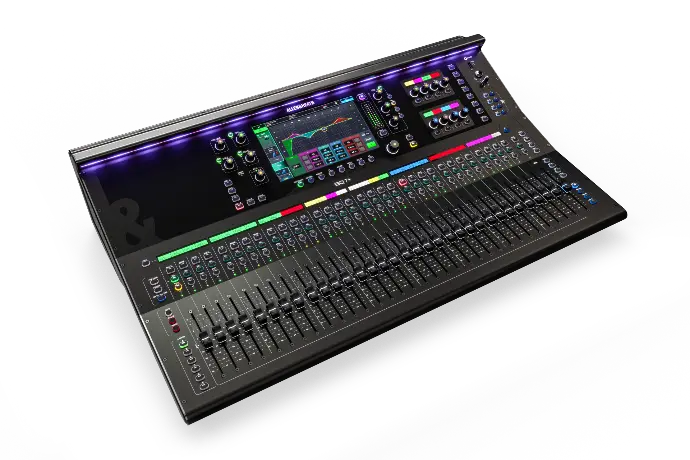

SQ7 +
- 96kHz XCVI Core
- 9" Touchscreen
- 48 Input Channels
- LR+12 Stereo Group/Aux
- 4 FX Sends
- 8 FX engines w/stereo returns
- 4 RackUltra FX Sends
- 4 RackUltra FX engines w/stereo returns
- 32+1 100mm Faders w/6 custom layers
- 16 SoftKeys, 8 Soft Rotaries
- 32+1 XLR Mic/Line Inputs
- 2 TRS Stereo Line Inputs
- 3.5mm Stereo Line Input
- 16 XLR Line Outputs
- 2 TRS Outputs
- AES3 Stereo Output
At its heart, SQ+ packs the same 48-input, low-latency 96kHz XCVI core that underpins the SQ range, but now with significantly more processing headroom for studio-grade effects and the latest generation of DEEP Add-Ons.
The headline addition is four RackUltra FX engines, each with dedicated stereo sends and returns. Developed for the flagship dLive system, RackUltra FX delivers a suite of effects including reverbs, vocal tuning, pitch processors, amp modelling, and saturation. All four engines come as standard on every SQ+ model, with Add-Ons available from the Allen & Heath shop.
The increased processing power enables the next generation of DEEP Add-Ons - CompStortion, Source Expander, and Dual Threshold Expander – previously only available on dLive and Avantis. At launch, new SQ+ owners can claim the PlusPack - the full suite of DEEP and standard FX Add-Ons in a single bundle - simply by registering their mixer and signing up to the Allen & Heath newsletter.

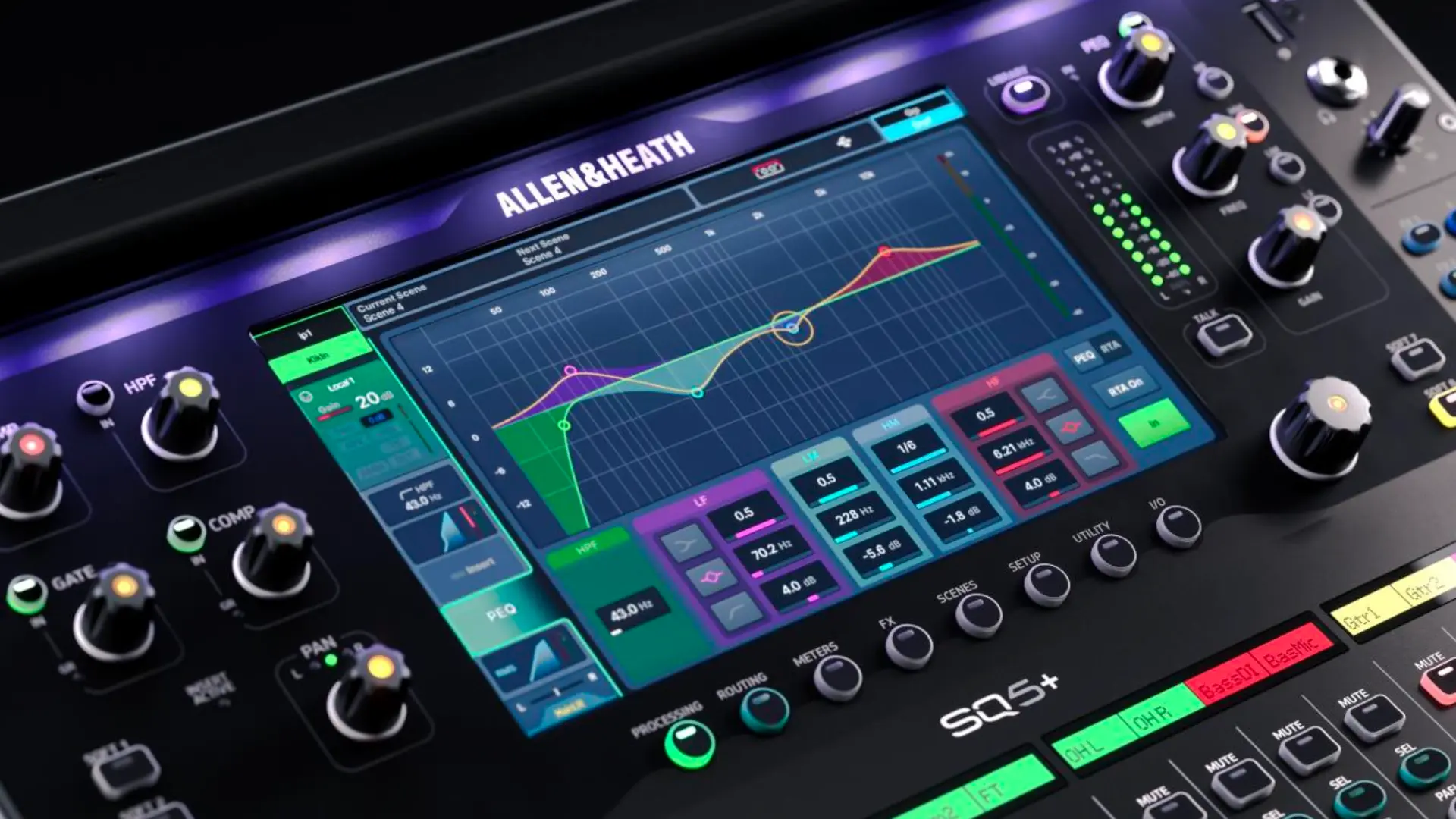

The user interface is built around a larger 9-inch touchscreen and a new dark GUI for improved clarity in all mixing environments. All models retain SQ’s full connectivity suite: a 128x128 Intelligent SLink port, a dedicated I/O expansion slot supporting Dante, MADI, Waves and SLink cards, dual USB ports for multitrack recording and computer interfacing, and remote control via free apps for Windows, macOS, iOS and Android.
