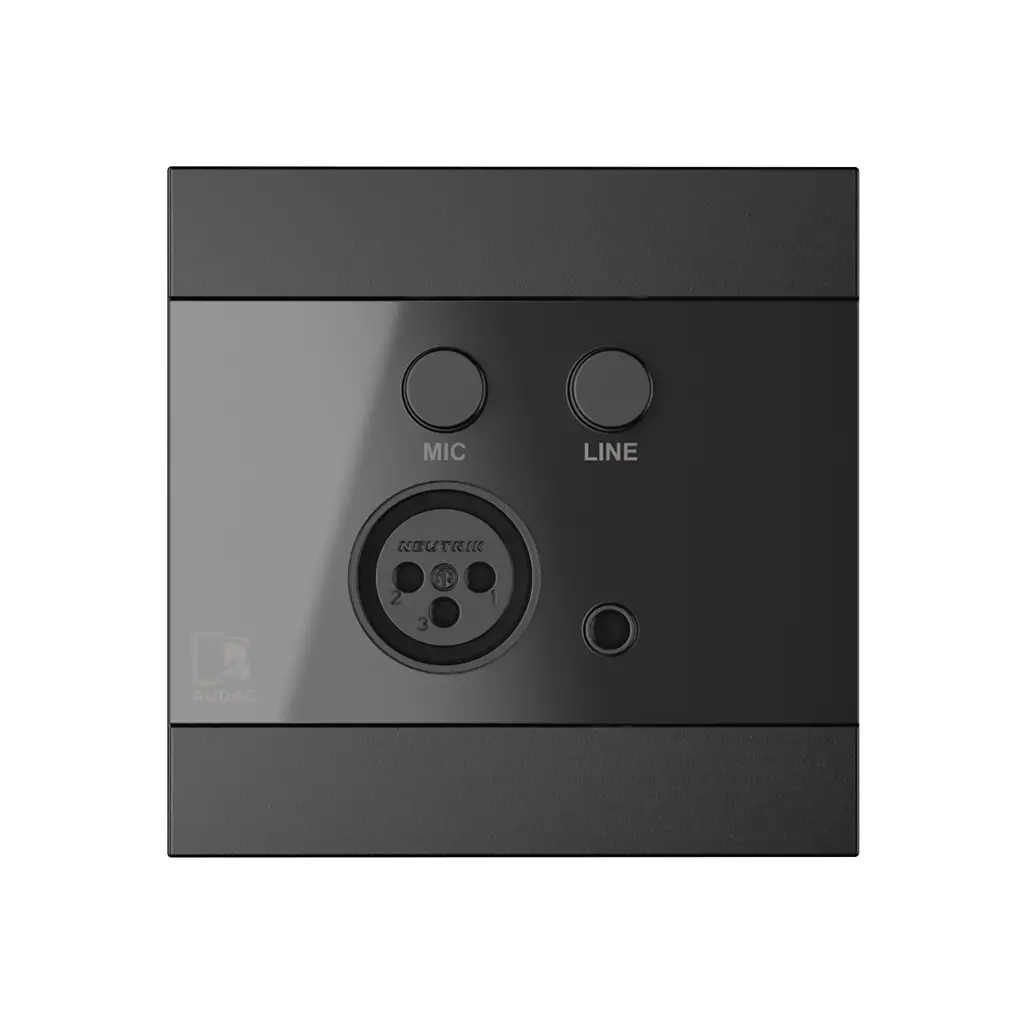

AUDAC WP205/B — ARES5A wall panel - Microphone & line input - 80 x 80 mm.
- Version: Black version - EU-style standard
- Inputs: Wall Panel / Type / 3.5 mm jack stereo line input connection; Wall Panel / Type / XLR microphone input connection
- Outputs: Level / +12 dB
- Connection: 3.5 mm jack input (Stereo line input); Female XLR input connector (Microphone input); 8-pin terminal block (3.81 mm pitch) output connection
- Control: Individual input level control for Mic & Line; Phantom power (DIP switch on rear); Low-cut (Mic) enable / disable (DIP switch on rear); Mono / Stereo (DIP switch on rear)
- Dimensions: 80 x 80 mm (W x H) (Remote wall panel)
- Installation standard: Compatible with EU installation materials
