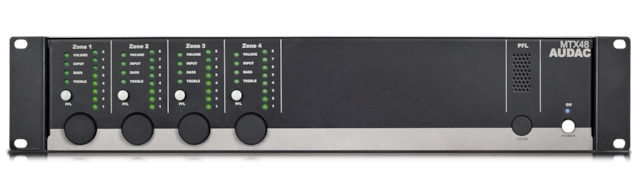

AUDAC MTX48

AUDAC MTX48 — 4-zone audio matrix.

Outputs: Balanced Stereo / Type / 3-pin Euro Terminal Block (Pitch - 3.81 mm); Impedance / 51 Ω; Level / -70 dB ~ 0 dB; EQ / Treble / ± 14 dB (2.5~20 kHz); EQ / Bass / ± 14 dB (100 Hz)
Control: Front panel; RS-232; TCP/IP (RJ45); Wall panel (RS-485); Audac Touch™
Power: Consumption / 12 W; Supply / 100 ~ 240 V AC / 50 ~ 60 Hz; Supply / 24 V DC (emergency Power)
Frequency: Response (± 3 dB) / 20 Hz - 20 kHz
Dimensions: 482 x 88 x 335 mm (W x H x D)
Weight: 4.750 kg
Unit height: 2 HE

Pricing is available on request and depends on system configuration, quantity and project requirements. Contact XLR for a tailored quotation.
