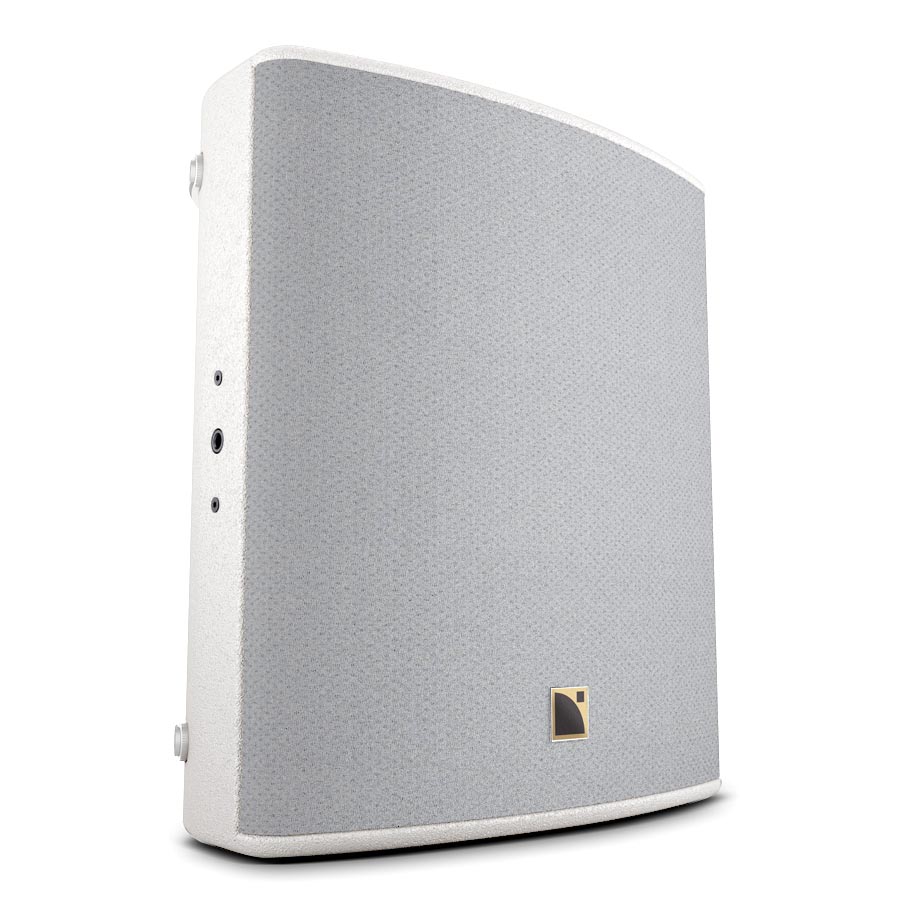

The L-Acoustics X12RAL is a 2-way passive coaxial enclosure: 12'' LF + 3'' HF diaphragm (RAL).
- Configuration: 2-way passive coaxial enclosure: 12'' LF + 3'' HF diaphragm (RAL)
- Usable bandwidth (-10 dB): 59 Hz / – / 20 kHz / ( / [X12] / )
- Nominal directivity (-6 dB): vertical: 90° symmetric / horizontal: 60° symmetric
- Transducers: LF: 1 × 12″cone driver / HF: 1 × 3″diaphragm compression driver, neodymium
- Nominal impedance: 8 Ω
- Connectors: IN: 1 × 4-point speakON / LINK: 1 × 4-point speakON
- Weight (net): 20 kg / 44.1 lb
