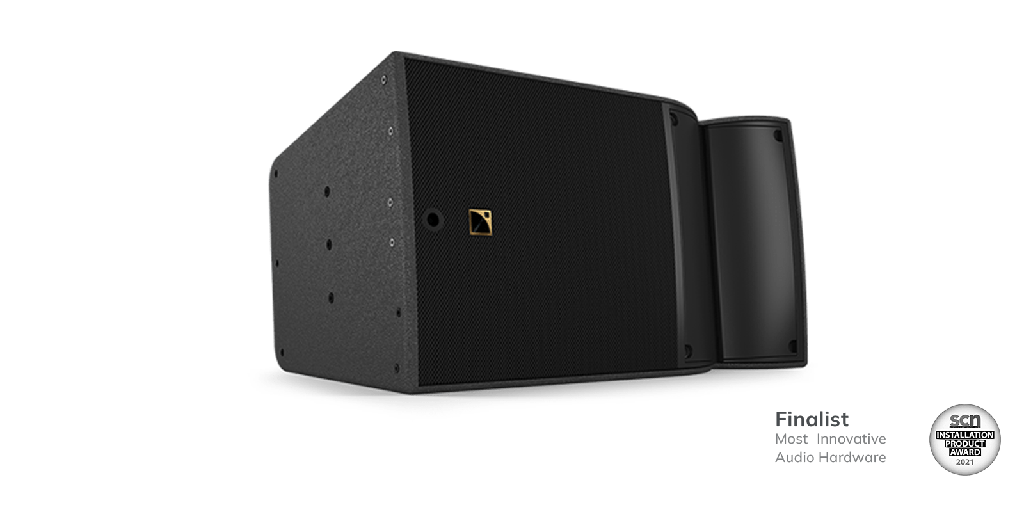

The L-Acoustics A15i FOCUS is a 2-way passive constant curvature WST® 10° enclosure: 15" LF + 3" HF diaphragm (installation version).
- Configuration: 2-way passive constant curvature WST® 10° enclosure: 15" LF + 3" HF diaphragm (installation version)
- Usable bandwidth (-10 dB): 41 Hz – 20 kHz ([A15])
- Nominal directivity (-6 dB): Enclosure: 10° / L-Fins : 110° / 70° symmetric ; 90° asymmetric
- Transducers: LF: 1 × 15’’ cone driver / HF: 1 × 3’’ diaphragm neodymium compression driver
- Nominal impedance: 8 Ω
- Connectors: 1 × 4-point terminal block with push-in connection / 1 × connector sealing plate with cable gland
- Weight (net): 32 kg / 71 lb
