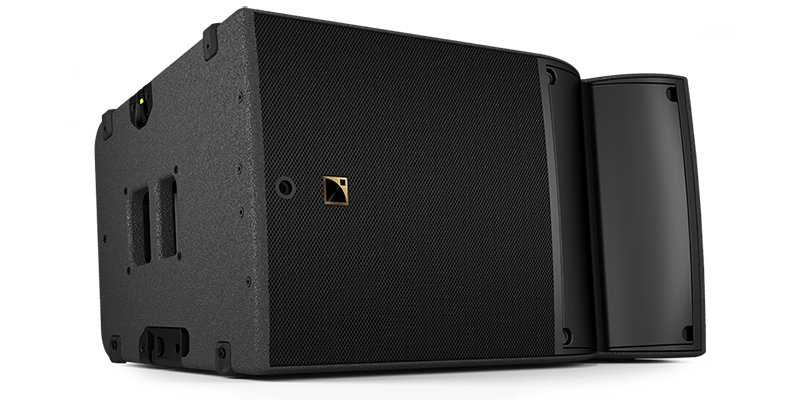

L-Acoustics A15 FOCUS

The L-Acoustics A15 FOCUS is a 2-way passive constant curvature WST® 10° enclosure: 15'' LF + 3'' HF diaphragm.

• Configuration: 2-way passive constant curvature WST® 10° enclosure: 15'' LF + 3'' HF diaphragm
• Usable bandwidth (-10 dB): 41 Hz – 20 kHz ([A15])
• Nominal directivity (-6 dB): Enclosure: 10° / L-Fins: 110° / 70° symmetric , 90° asymmetric
• Transducers: LF: 1 × 15″ cone drivers / HF: 1 × 3″ diaphragm compression drivers
• Nominal impedance: 8 Ω
• Connectors: IN: 1 × 4-point speakON / LINK: 1 × 4-point speakON
• Weight (net): 35 kg / 77 lb
