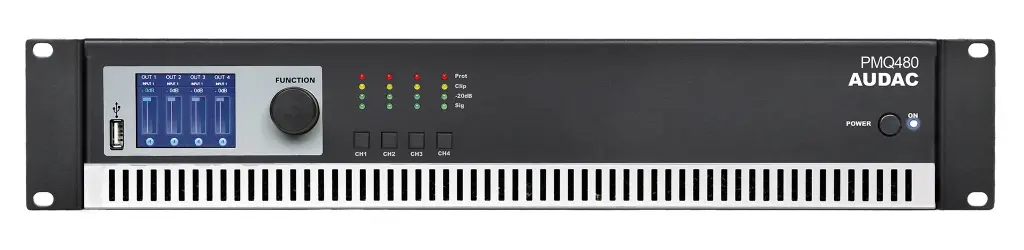

AUDAC PMQ480 — WaveDynamics™ quad-channel 70/100V power amplifier.
- Continuous power (AES): @ 8 Ω / 4 x 480 W; @ 70 V / 4 x 480 W; @ 100 V / 4 x 480 W
- Inputs: Sensitivity / -30 dB ~ +5 dB; Impedance / 10 kΩ balanced; Connector / XLR & 3-pin Euro Terminal Block (3.81 mm)
- Outputs: Connector / 4-pin Euro Terminal Block (Pitch - 5.08 mm)
- Power: Supply / Switching mode; Supply / AC Input: 100-120V/220-240V~ 50/60Hz
- Mounting: 19”
- Construction: Steel
- Frequency: Response (± 3 dB) / 50 Hz - 20 kHz
