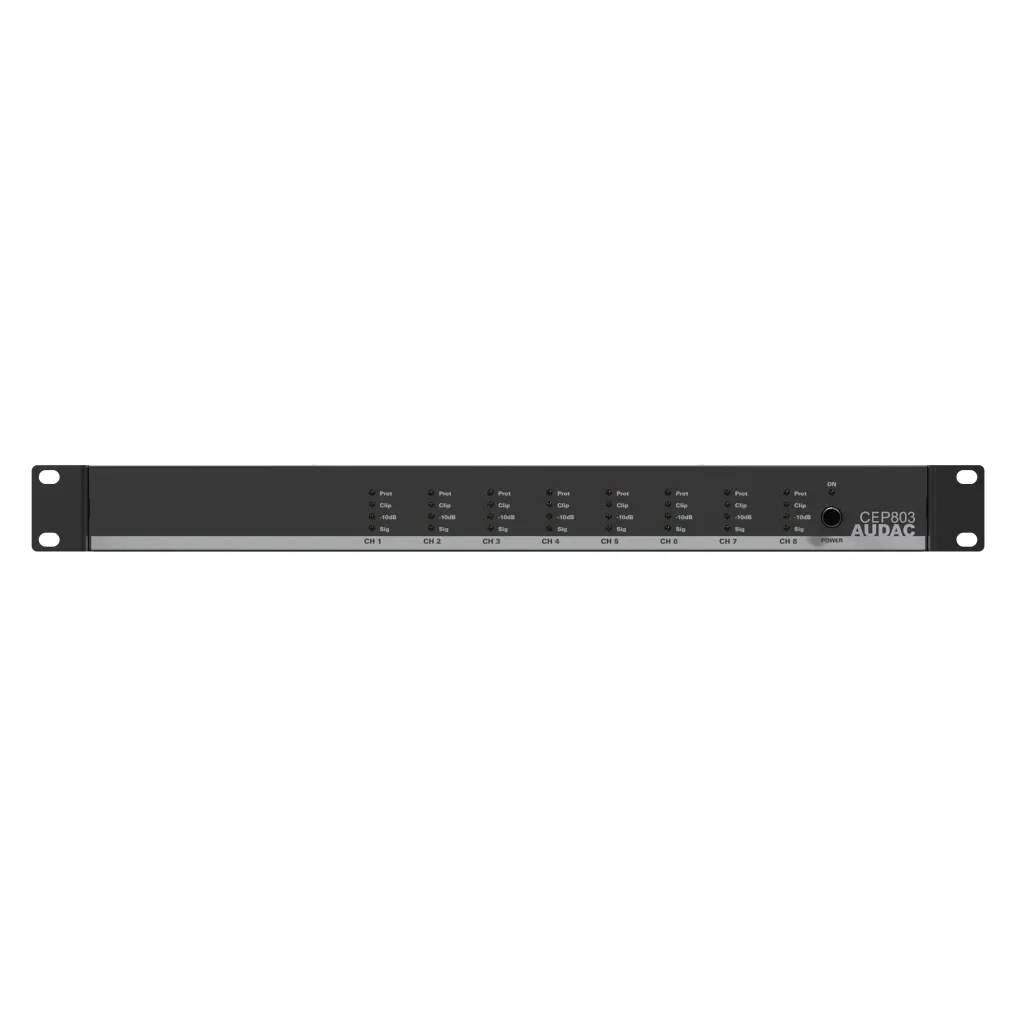

AUDAC CEP803 — Octo channel 4 Ohm energy-efficient amplifier - 8 x 30W - 70/100V.
- Continuous power (AES): @ 4 Ω / 8 x 30 W; @ 70 V / 8 x 30 W; @ 100 V / 8 x 30 W
- Inputs: Connector / IEC C14 Connector; Input linking through miniature switches; Connector / 3-pin Euro Terminal Block (Pitch - 3.81 mm); Sensitivity / -0.5 dB ~ 10.5 dB
- Outputs: Connector / 4-pin Euro Terminal Block (Pitch - 5.08 mm); Voltage / Impedance / 4 Ω; Voltage / Impedance / 70 V / 167 Ω; Voltage / Impedance / 100 V / 333 Ω
- Power: Supply / Switching mode; Source / 100 ~ 240 V AC / 50 ~ 60 Hz; Consumption / Standby / 0.6 W; Consumption / Idle / 17.5 W; Consumption / Nominal (1/3 MUP) / 150 W; Consumption / Nominal (1/8 MUP) / 68 W
- Mounting: 19”
- Construction: Steel
- Frequency: Response (± 3 dB) / 110 Hz - 20 kHz
