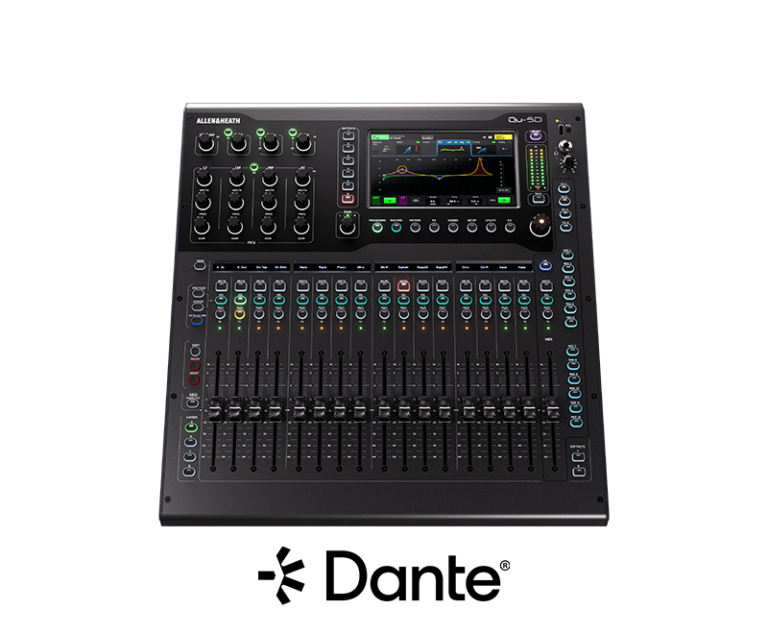

Working with the Allen & Heath Qu-5D
Build the operating position around the show. The Qu-5D pairs a familiar fader-based workflow with digital routing, letting the system design address the engineer, stage connections and recording requirements together.
Choose the layout for your system
Use the compact surface where the mixing position needs to share space with other equipment. A rack installation is possible with the optional mounting kit. Plan access to the touchscreen, cable connections and faders as part of that installation, so a compact footprint does not make day-to-day operation awkward.
Connect the console to the wider system
The integrated Dante connection gives this version a direct role in a Dante-based system. Specify the required audio routes, sample rate and clocking before connecting it to other equipment. Keep the SLink expansion path separate in the system drawing: the two ports serve different connection requirements and are not interchangeable.
Prepare for recording and repeatable shows
Decide whether the production needs a computer-based recording session or capture on removable media. Check the supported recording format, sample rate and track count for the selected route before the event. Save and review the show setup, including routing and recall behaviour, so the next operator can understand how the system is intended to work. Bring the input list, monitor requirements and recording plan to XLR when discussing the configuration; together they describe the job more clearly than the console size alone.
