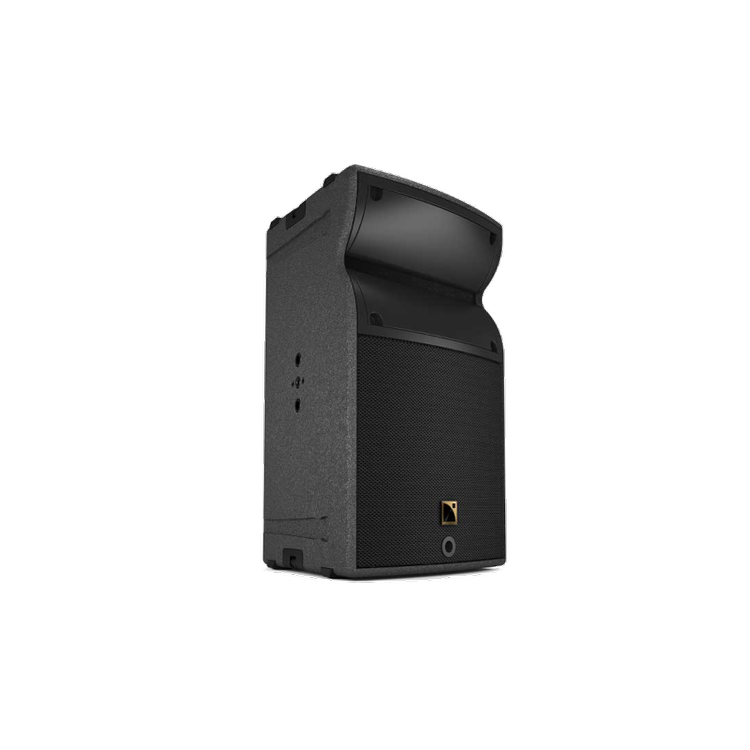

L-Acoustics A10 Wide : Professional Wide-Coverage Loudspeaker
Wide coverage. Compact format. Professional L-Acoustics performance.
The L-Acoustics A10 Wide is a compact 2-way passive 10-inch constant curvature line source designed for professional live sound, rental systems, corporate AV and permanent installations.
Part of the renowned L-Acoustics A Series, the A10 Wide combines high acoustic output with broad vertical coverage and flexible horizontal directivity.
With a maximum SPL of 137 dB, a usable bandwidth from 67 Hz to 20 kHz and 30° vertical directivity, the A10 Wide is particularly effective when wide audience coverage is required from a compact enclosure.
Advanced L-Acoustics technologies including Panflex™, DOSC and L-Vents™ ensure precise coverage, consistent sound quality and efficient low-frequency performance.
Key Features of the L-Acoustics A10 Wide :
- 2-way passive 10” loudspeaker
- Constant curvature WST® line source
- Maximum SPL: 137 dB
- Usable bandwidth: 67 Hz – 20 kHz
- 30° vertical coverage
- Adjustable horizontal directivity with Panflex™
- 70° or 110° symmetric horizontal coverage
- 90° asymmetric horizontal coverage
- 1 × 10” neodymium LF driver
- 1 × 2.5” HF compression driver
- DOSC waveguide
- L-Vents™ bass-reflex technology
- Nominal impedance: 8 Ω
- Net weight: 20 kg
- Compact professional enclosure
- Suitable for flown and ground-stacked applications
- Designed for use with L-Acoustics amplified controllers
Wide Vertical Coverage for Flexible Sound Reinforcement
The main difference between the A10 Wide and the A10 Focus is its wider vertical dispersion.
The A10 Wide provides 30° vertical coverage, making it ideal for applications where a single enclosure must cover a larger vertical audience area.

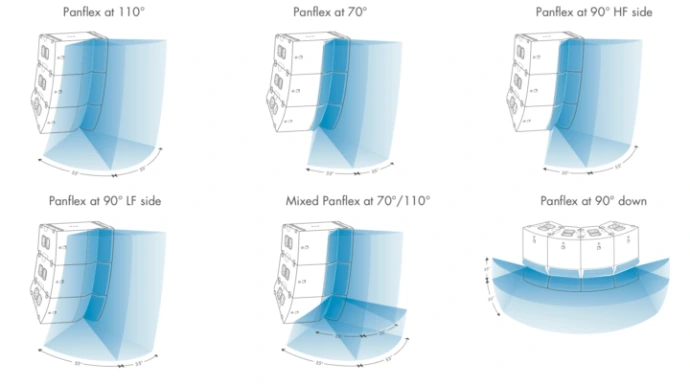

Flexible Horizontal Coverage with Panflex™
The A10 Wide incorporates L-Acoustics Panflex™ technology, allowing its horizontal directivity to be adapted according to the geometry of the venue.
Depending on the configuration of the adjustable L-Fins, the A10 Wide can provide:
- 70° symmetric coverage
- 110° symmetric coverage
- 90° asymmetric coverage
This flexibility allows the loudspeaker to focus acoustic energy precisely where it is required while reducing unwanted spill toward walls, ceilings or adjacent audience areas.
From Point Source to Constant Curvature Line Source
The A10 Wide has been designed as a scalable professional sound solution.
A single enclosure can operate as a powerful compact loudspeaker for smaller venues and events.
Multiple A10 enclosures can also be combined to create constant-curvature line-source configurations adapted to larger audience areas.
This flexibility makes the A10 platform particularly attractive for rental companies, venues and AV professionals who need a system capable of adapting to multiple applications.
A10 Wide vs A10 Focus
The A10 Wide and A10 Focus are complementary loudspeakers within the L-Acoustics A Series.
The A10 Wide provides 30° vertical coverage, making it ideal for wider audience areas and shorter or medium throw applications.
The A10 Focus provides a much narrower 10° vertical coverage, allowing greater projection and more focused acoustic energy.
From Point Source to Constant Curvature Line Source
The A10 Wide has been designed as a scalable professional sound solution.
A single enclosure can operate as a powerful compact loudspeaker for smaller venues and events.
Multiple A10 enclosures can also be combined to create constant-curvature line-source configurations adapted to larger audience areas.
This flexibility makes the A10 platform particularly attractive for rental companies, venues and AV professionals who need a system capable of adapting to multiple applications.
Complete the A10 System with L-Acoustics KS21
For applications requiring greater low-frequency impact and extension, the A10 Wide can be combined with the L-Acoustics KS21 high-power compact subwoofer.
The KS21 provides the low-frequency extension needed for applications where greater bass impact is required while maintaining a compact system footprint.

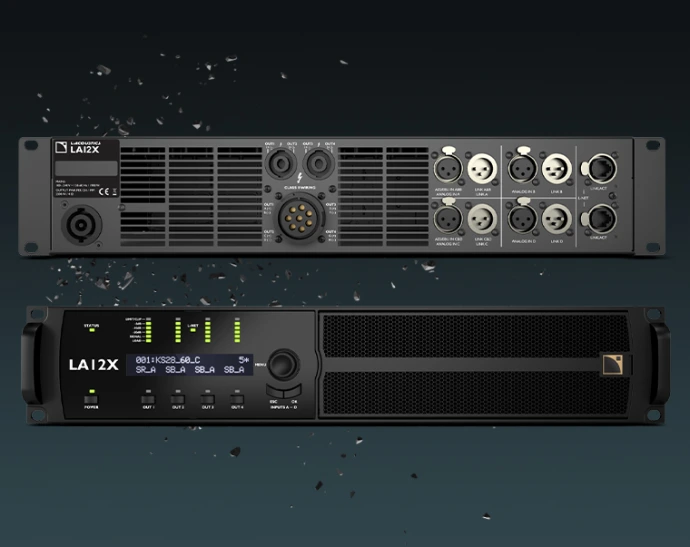

L-Acoustics Amplified Controllers
The A10 Wide is designed to operate within the complete L-Acoustics ecosystem.
It can be powered and controlled with L-Acoustics amplified controllers including :
These controllers combine amplification, DSP processing, loudspeaker management and system protection within the L-Acoustics environment.
Using dedicated L-Acoustics electronics ensures predictable system performance and allows engineers to work within a fully integrated platform.
XLR : Official L-Acoustics Distributor for Belgium & Luxembourg
XLR is the official L-Acoustics distributor for Belgium and Luxembourg.
We support professional users throughout Belgium and Luxembourg with access to the complete L-Acoustics ecosystem, combined with technical expertise and system design support.
Whether you require a single A10 Wide enclosure or a complete professional L-Acoustics system, the XLR team can help you define the appropriate solution for your application.
Looking for the L-Acoustics A10 Wide in Belgium or Luxembourg?
Contact the XLR L-Acoustics team for pricing, availability, demonstrations, technical information or professional system design support.
From compact A10 systems to complete A Series, K Series, L Series and L-ISA solutions, XLR provides professional L-Acoustics expertise for the Belgian and Luxembourg markets.
