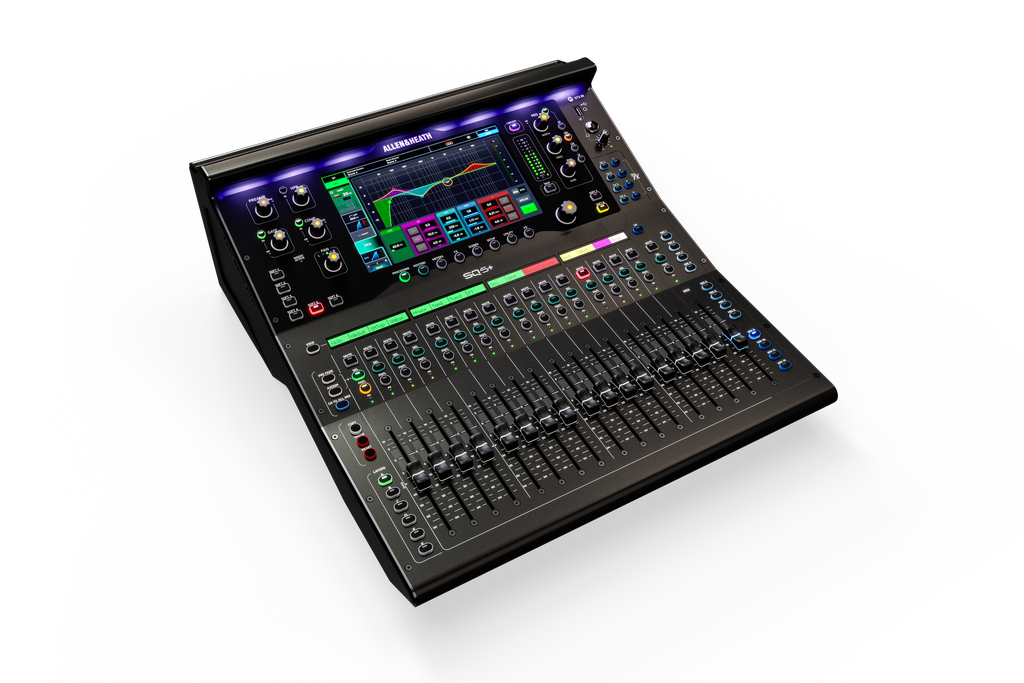

Allen & Heath SQ-5+

The Allen & Heath SQ-5 is a compact digital mixer for live sound and installed audio. It combines 48 input channels with a 96 kHz processing engine, motorised faders and integrated USB recording and playback.

• Processing: 96 kHz XCVI FPGA engine with 48 input channels.
• Mix buses: 12 stereo mixes plus LR and 3 stereo matrices.
• Local inputs: 16+1 microphone preamps and 2 stereo line inputs.
• Outputs: 12 XLR line outputs, 2 TRS line outputs and AES output.
• Control: 16+1 motorised faders, 6 layers, 7-inch touchscreen and 8 assignable SoftKeys.
• USB audio: 32-in/32-out interface at 96 kHz.
• Expansion: SLink port and a 64-in/64-out I/O slot for optional networking cards.
